100 in stock

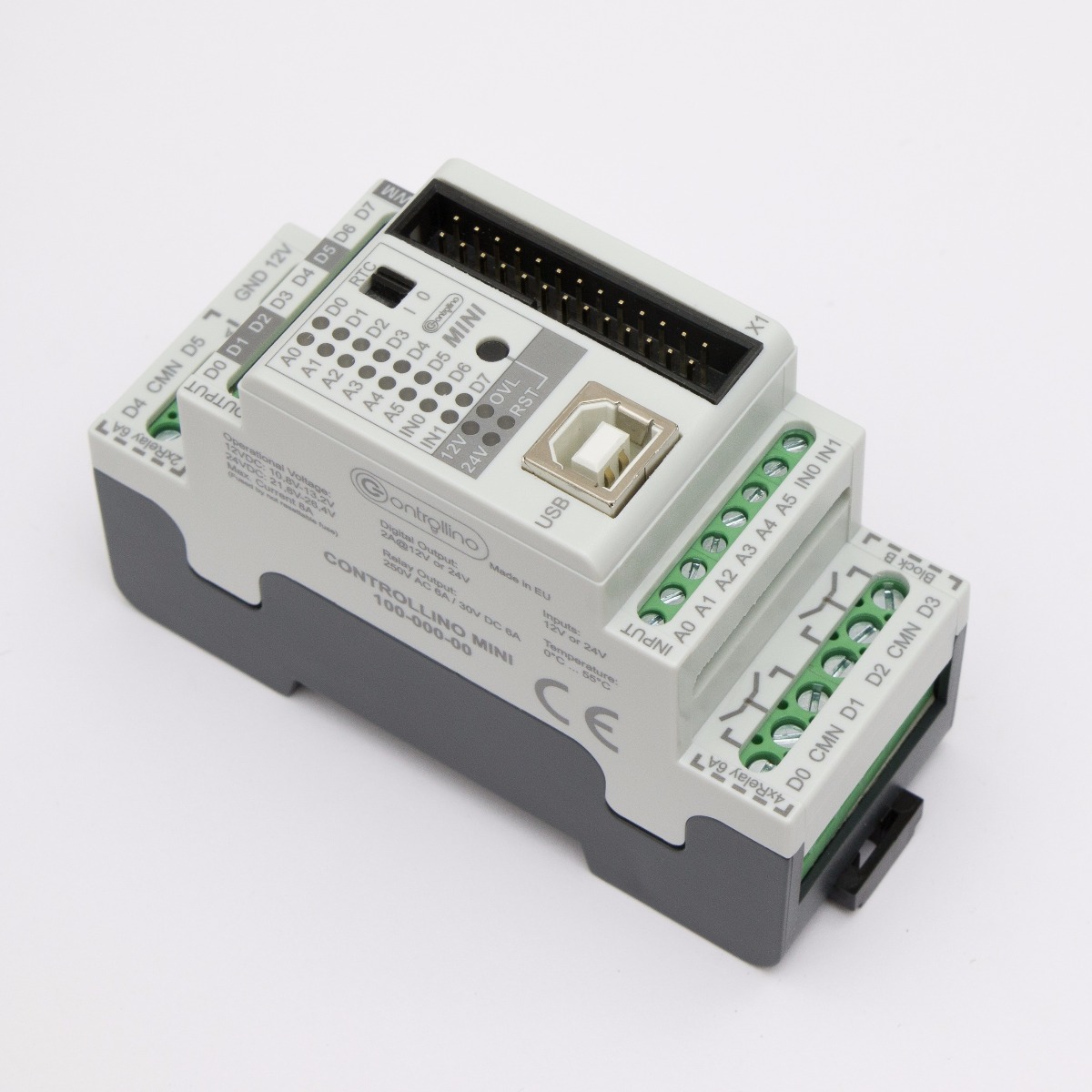

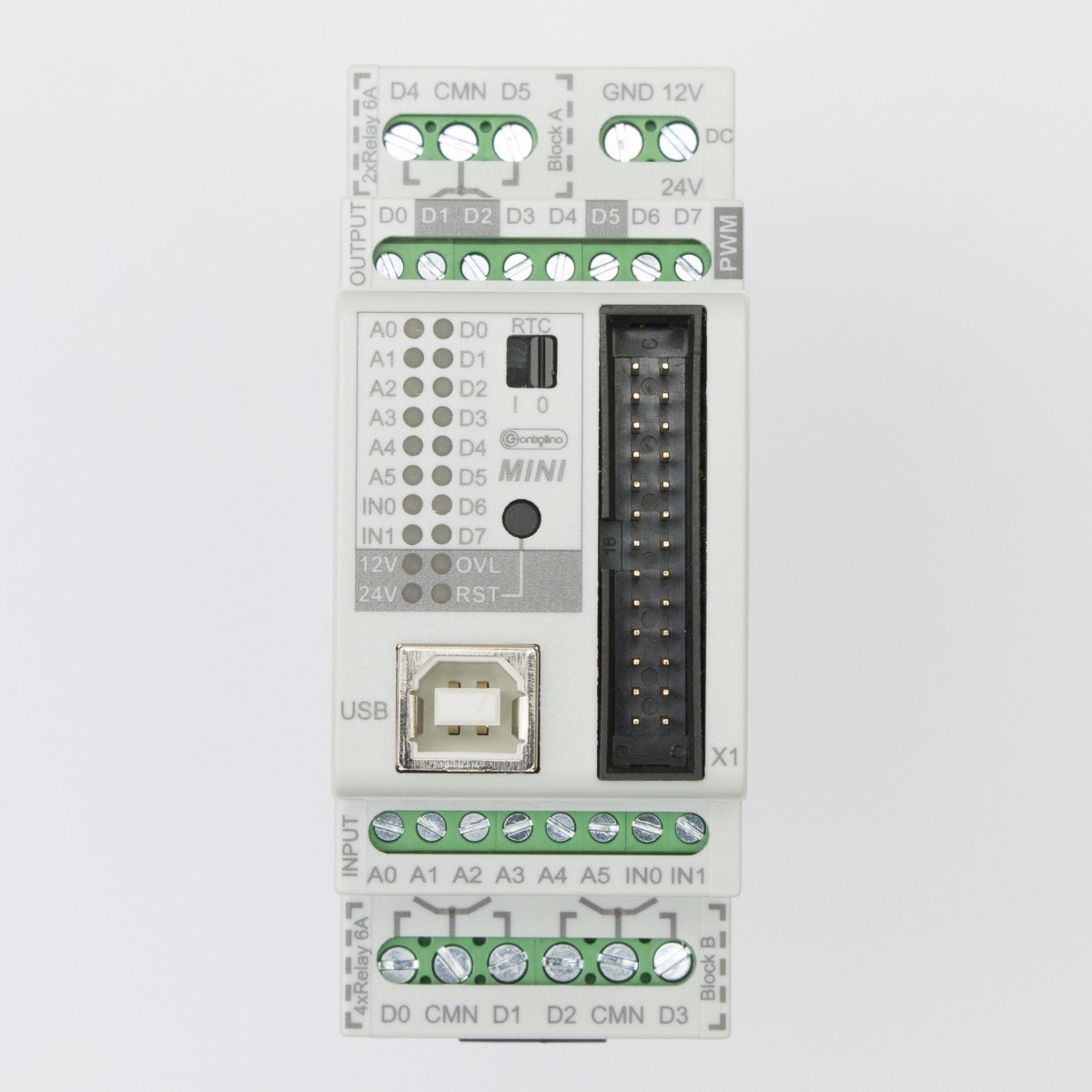

The MINI is the smallest child in our CONTROLLINO family. But no worries – it’s still a big boy when it comes to the number of inputs and outputs (8 each). The incredible size to I/O ratio makes the MINI one of the most compact and versatile PLCs on the market.
Pinheader protection caps included!
€149.00 excl VAT
100 in stock
The MINI is the smallest child in our CONTROLLINO family. But no worries – it’s still a big boy when it comes to the number of inputs and outputs (8 each). The incredible size to I/O ratio makes the MINI one of the most compact and versatile PLCs on the market.
| Features | MINI |
|---|---|
| 5V Pin Headers | Yes |
| Analog/Digital Inputs | 6 (2x only Analog) |
| Only Digital Inputs | 2 |
| Analog 0-10V Inputs | no |
| Interrupt Inputs | 2 |
| Digital 2A Outputs | 8 (3 PWM) |
| Analog 0-10V Outputs | no |
| Relay Outputs | 6 (parallel to Digital Outputs) |
| Serial TTL Interface | 1 |
| I²C Interface | 1 |
| SPI Interface | 1 |
| RS485 Interface | no |
| RTC | 1 |
| Ethernet Interface | no |
| Stepper Driver Output | no |
| Weight | 0.2 kg |
|---|
